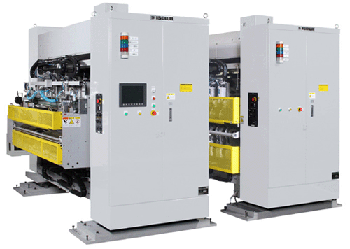

Slitter Scorers "HSS6"
Two unit slitter scorer with full use of ISOWA’s proprietary know-how.
Specifications
| Model | Slitter Scorer HSS6 |
|||
|---|---|---|---|---|
| Number of Unit | 1 | |||
| Machine Size | 2500mm | 2200mm | 2000mm | 1800mm |
| Basic Configuration | 1 Unit 3 Axis each for Top and Bottom (Scorer, Scorer, Slitter) |
|||
| Max. Paper size | 2500mm | 2200mm | 2000mm | 1800mm |
| Max. Slit size | 2500mm | 2200mm | 2000mm | 1800mm |
| Min. Slit size | 190mm | |||
| No. of Slit Knife | 5-9 pieces | |||
| Knife Outside dia. | Round Blade:260mm | |||
| Max. Number of Outs | 8 Outs | 6 Outs | 6 Outs | 5 Outs |
| Max. Number of Outs (Double load) |
16 Outs | 12 Outs | 12 Outs | 10 Outs |
| Min. Crease distance | 0 (Zero) mm | |||
| Max. Number of Scores | 16 Scores |
12 Scores |
12 Scores |
10 Scores |
| Trim Shear | Hyper Trim Shear as standard. | |||
| Max. Number of Scores (Double load) |
16-32 Scores | |||
* Specifications and designs are subject to change, without notice due to the improvements.

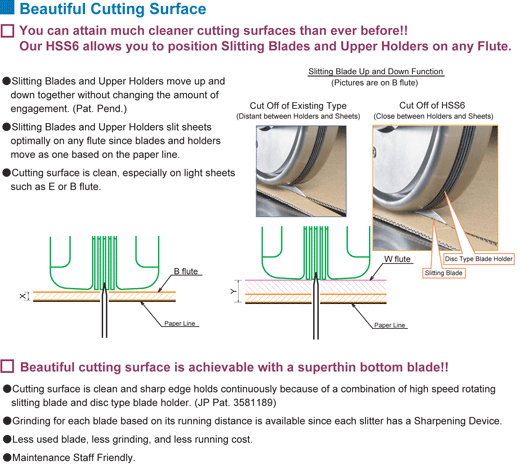

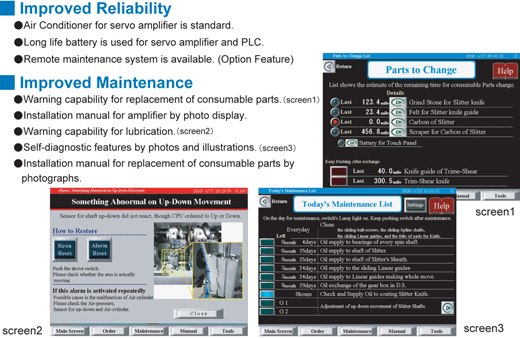

Features
Field Service by Isowa
We are very proud to have service that is as good as our machines. Please click here to find out more about Isowa’s field service.
> Go to Service for details
Please contact for any questions.
