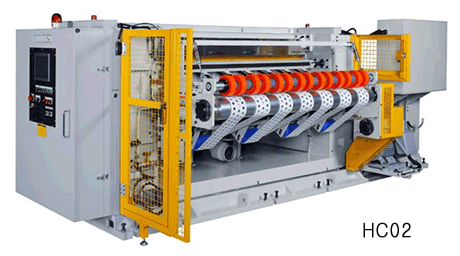

Helical Cut Off
Helically-set blades have enabled more stable cutting at higher speeds.
Specifications
We have three models to accommodate your specific production needs.

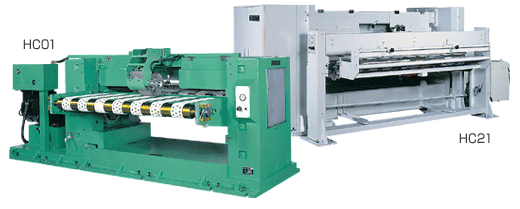

| Model | Helical Cut Off HC11 |
Helical Cut Off HC01 |
Helical Cut Off HC21 |
|---|---|---|---|
| Max. Production Speed | 240m/min. | 300m/min. | 350m/min. |
| Max. Paper Width | 2,000mm | 2,200mm | 2,500mm |
| Cutting Capacity | 1,700g/㎡ | ||
| Min. Cutting Length | 500mm | ||
| Cutting Accuracy | Less than±1.0 mm（at Constant Speed） | ||
| Delivery Conveyor | Suction Belt Type（With Duct Filter box） | ||
| Machine Dimension *1 (Width×Length×Height) |
4,454mm ×2,380mm ×1,550mm |
4,460mm ×2,380mm ×1,550mm |
4,262mm ×2,353mm ×1,800mm |
| Number of Installations *2 | 27units （Up to Dec. 2005） |
13units （Up to Dec. 2005） |
2units （Up to Dec. 2005） |
*1 In case of 2,000mmMax. Paper Width Machine
*2 271 of our original-model cutters (DCC Model) were installed.
Features
Our helical cut-off knife is designed for short cuts at high speeds. Cutting length accuracy and clean cutting are its strengths.
| Optional paper dust removal device is available. |  |
Your cutting dust problem is solved. |
|---|---|---|
| Serrated knife can be used on top. | |
Angel hair is drastically reduced. |
| With a large-diameter, wide measuring wheel, measuring is more accurate. | |
Improved cutting accuracy |
| The HC21 uses hollow knife cylinders with three bearings on a fixed shaft. | |
Clean cuts at high speeds even in wide-width models |
Performance Curves
See the performance curves for the HC01 and HC21
