Stacker
Designed to accommodate very short lots and orders. A cycle time of 9 seconds even for the minimum-size orders.
Specifications
We have three models to accommodate your specific production needs.
| Model | Up Stacker CUS3 |
Up Stacker CUS2 |
Up Stacker CD45 |
|---|---|---|---|
| Continuous Machine Speed | 250m/min. 300m/min. *1 | ||
| Order Change Cicle Time | 9 sec | 13 sec | 16 sec |
| Max. Paper Width | 2,200mm | 2,200mm | 2,500mm |
| Min. Paper Width | Half of Max. Paper Width | ||
| Max. Stack Cutting Length | 3,100mm or 3,600mm（Selection） | ||
| Min. Stack Cutting Length | 550mm | ||
| Window Creation Method | Conveyor Acceleration | ||
| Window Creation Mechanism | 6 Spring Plates and Vacuum Conveyor | ||
| Sheet Stacking Method | Based at lifter’s center | ||
| Stacking Height | Specifiable by Number of Sheets | ||
| Machine Length | 20,000mm～ 21,000mm |
19,000mm～ 20,000mm |
18,000mm～ 19,500mm |
*1 For the 300m/minute model, a double-separator conveyer is used. Top speeds may be limited by cut
lengths.
*2 We also have 85 down stacker installations.

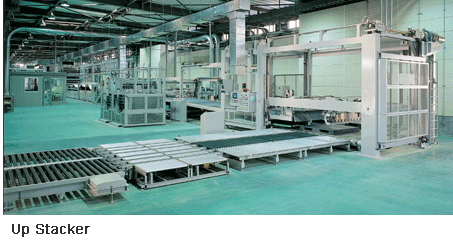

Features(Up Stacker）
| ･ Cycle time of 13 seconds. ･ An 11-second cycle time for multi-order stacking. |
 |
Accommodates consecutive small lots running at high speeds |
|---|---|---|
| ･ Center-based stacking. ･ Sheet-alignment curtain at the entrance. ･ Uses vector-inverter motors for the conveyor (no control steps). |
|
Accurate stacking |
| The pressure amount of the spring plates is automatically controlled. ･ Scrap-remover device that accommodates the top speed of 300m/min. |
|
Accurate separating at high speeds |
| Unlike other brands, no pits are needed. | |
Installation costs are reduced |
Field Service by Isowa
We are very proud to have service that is as good as our machines. Please click here to find out more about Isowa’s field service.
→Go to Service for details
