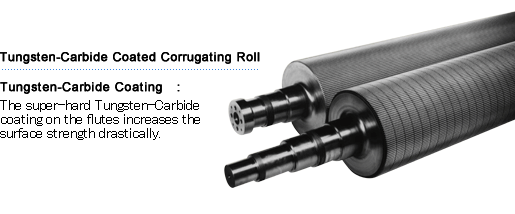

Corrugating Rolls with Tungsten-Carbide Finish
Isowa's corrugating rolls with tungsten-carbide finish have always performed exceptionally. The life of a corrugating roll can be more than twice as long as a conventional chrome-plated roll
Specifications
Our corrugating rolls have always received much accolades from customers
| Diameter | 320mm | 400mm |
|---|---|---|
| Life (Linear Meters) | Average 54,000,000m （62,000,000m～40,000,000m） |
Average 60,000,000m （90,000,000m～52,000,000m） |
| Number of Installation | 278sets（Up to Dec. 31, 2005） | |
Features
| Average life is more than doubled due to the highly-wear-resistant Tungsten-Carbide coating. |  |
Drastic reduction in running and maintenance costs |
|---|---|---|
| Able to run faster and longer compared to the conventional chrome-plated roll. | |
Higher quality and longer life with lower loss ratio |
| Unlike chrome plating, no toxic run off is associated with Tunsten-Carbide. | |
Easy on the environment |
Comparison with Hard Chrome Plating

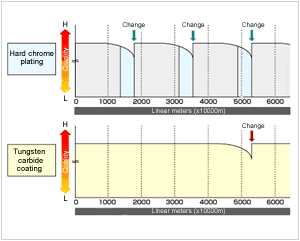

A comparison chart showing lengths of reliable service between the chrome-plated roll and the Tungsten-Carbide coated roll
Comparison with Hard Chrome Plating

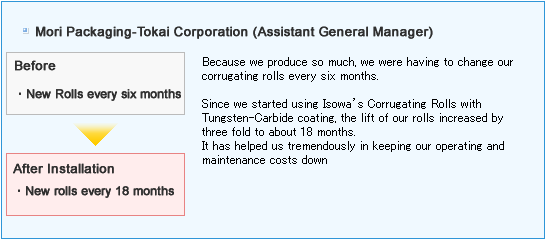

Customer’s Voice
Anyone is welcome
Isowa will gladly resurface any brand corrugating rolls with Tungsten-Carbide coating
Field Service by Isowa
We are very proud to have service that is as good as our machines. Please click here to find out more about Isowa’s field service.
→Go to Service for details
