Flexo Rotary Die Cutter

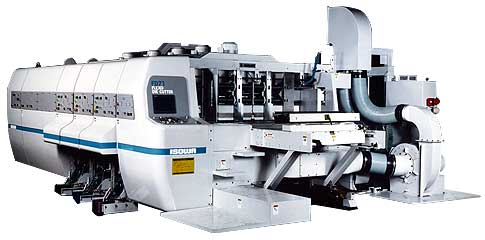

The Isowa Flexo Rotary Die Cutter is a high-precision die cutter that utilizes vacuum transfer and independent drives
Specifications
| Model | Flexo Rotary Die Cutter （Soft cut system）FD71 |
|---|---|
| Machine production speed | 180Blanks/min. |
| Max. size of Blank | 1,540mm×2,070mm |
| Max. printing size | 1,540mm×1,980mm |
| Max. Die Cut size | 1,540mm×2,050mm |
| Min. size of Blank | 500mm×650mm |
| Machine size *1 （length×width） |
8,163mm×5,370m |
| Number of installation *2 | 4 （Up to Dec. 2007） |
*1 With three print units
*2 Including the FD77 model.
Features
These features make this a truly high-precision machine.
| ・Uses peristaltic pumps for ink circulation. ・Uses width-direction ink scrapers in addition to air for ink cleanup. |
 |
Ink loss during wash-up is drastically reduced. |
|---|---|---|
| All Vacuum Transfer | |
More accurate transfer through the machine as well as no sheet crushing because of pull rollers. |
| The independent-drive die cutter reduces vibration between sections | |
More stable printing and registration. |
