Jumbo Flexo Printer Slotter
For Sheet Sizes up to 2,200mm×4,050mm
Specifications

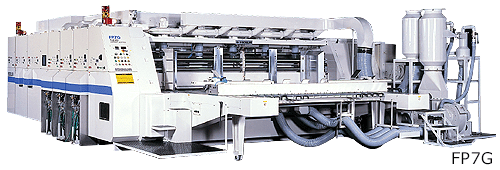

| Model | FP7G | FP72 |
|---|---|---|
| Machine production speed | 90Blanks/min. | 110Blanks/min. |
| Max. size of Blank | 2,050mm×4,050mm | 1,550mm×3,635mm |
| Max. size of Blank by skip Feed |
2,200mm×4,050mm | 1,800mm×3,635mm |
| Max. printing size | 2,190mm×3,880mm | 1,600mm×3,500mm |
| Min. size of Blank *1 | 500mm×1,145mm | 430mm×935mm |
| Machine size *2 （length×width） |
10,838mm×8,110mm | 8,675mm×6,850mm |
*1 At the Production for regular slotted container - RSC
*2 At the 3 color printing
Features
Be more efficient with capabilities of processing much larger blanks.
| The Swing Slotter Knife mechanism where the slotter knife "hides" in a holder. |  |
Enables processing of the largest blanks without removing blades. |
|---|---|---|
| Equipped with the SuperFlex Plus Inking System(Patent Pending) | |
The effects of ink loss reduction is even more pronounced in a large machine like this. |
Field Service by Isowa
We are very proud to have service that is as good as our machines. Please click here to find out more about Isowa’s field service.
→Go to Service for details
Please contact for any questions.
