Splicers
Isowa’s patented drag-bar system delivers speedy and consistent splicing
Specifications

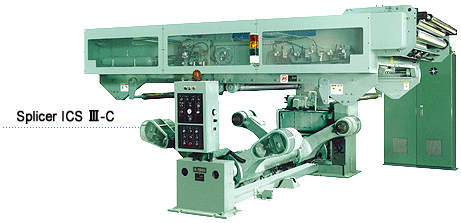

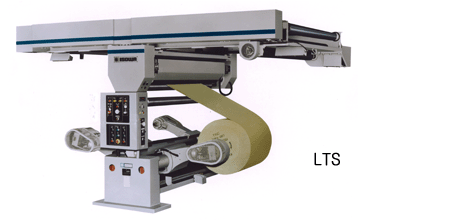

| Model | Splicer ICSⅢ-C | Splicer ICS | Splicer LTS |
|---|---|---|---|
| Max. Roll Diameter | 1,300mm or 1,500mm | ||
| Max. Paper Speed at Splice | 400m/min. | 300m/min. | 350m/min. |
| Max. Paper Speed at Tail Grabbing | 200m/min. | 150m/min. | 180m/min. |
| Tension Control Device | Built-in | Option | Option |
| Splice Overlap | Max. 10mm with 50mm Tape | ||
| Paper Basis Weight | 115～440g/㎡ * | ||
* “Please notify if your desired speed is more than 400m/minute.
Features
| The patented Drag Bar system is highly reliable in catching the tail |  |
Reliable tail grabbing even at high speeds |
|---|---|---|
| With the use of the unique Nip Bar, the outgoing roll’s speed is zero at splicing. | |
The zero speed ensures reliable splicing |
| Our experience with 1500 splicers has resulted in our unique design and construction, | |
Can splice even the heaviest wide-width rolls. |
| After the initial splice with the nip bar, a nip roller will doubly ensure a strong splice. | |
The double nipping guarantees strong splices. |
| The vacuum blower for the nip bar only comes on when setting up the new roll. | |
Reduces power usage |
| All splicers come with Isowa’s unique tension controller (ICSⅢ-C). | |
Keeps an optimum tension at all times. |
Field Service by Isowa
We are very proud to have service that is as good as our machines. Please click here to find out more about Isowa’s field service.
