Flexo Folder Gluers "IBIS" (Open/Close Type, Fixed Type )
The IBIS is a flexo folder gluer, capable of producing multiple types of boxes.
You have a choice of the accent color.
General features
Machine size ranges from 2400mm to 3000mm, 3 sizes are available.
| Type | 3000 | 2700 | 2400 | |
|---|---|---|---|---|
| Max. production speed | 250sheet/min(15,000sheet/hour) * Max. speed vary depending on specifications. |
|||
| Max. sheet size (mm) |
Lead Edge | 1,200 (※1,140)× 3,045 |
1,200 (※1,140)× 2,745 |
1,200 (※1,140)× 2,445 |
| Skip feed (mm) |
1,600× 3,045 |
1,600× 2,745 |
1,600× 2,445 |
|
| Max. print size (mm) |
1,200× 2,940 |
1,200× 2,640 |
1,200× 2,340 |
|
| Min. sheet size (mm) |
Open/Close Type | 280×785 | ||
| Fixed Type | 300×785 | |||
※Sun Lead Edge Feeder
Special features
The IBIS has been developed to make so called impossible orders to possible, with the following concept.
The IBIS responds to wide range of production needs.
The IBIS is equipped with many new technologies.

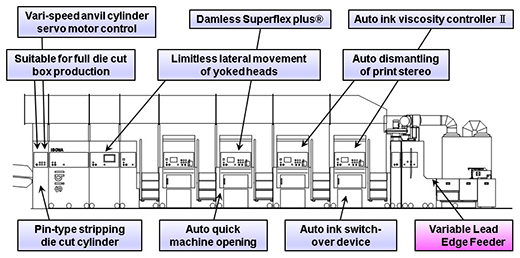

【1】 Technical features of Flexo Printer Slotter

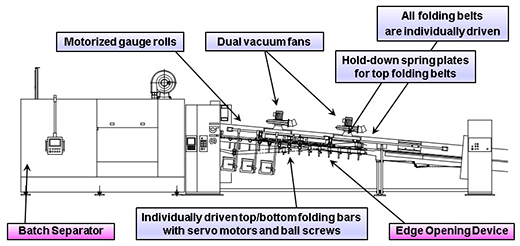

【2】 Technical features of Folder Gluer Counter Ejector
※The pink boxes are latest developments. Please contact us for details.
| Edge Opener(Optional) |  |
Reduce skew on the front side of the box Great improvement in manufacturer's joint accuracy |
|---|---|---|
| Batch Separator | |
A 10-count bundle into two 5-count bundles Up to 50 sheets/min speed faster than without Batch Separator |
The IBIS has many selective options for customer’s optimization.
Inking System (Patented)
The SuperFlex Plus Inking System - with faster color changes and minimal emission - is standard.
Field Service by Isowa
We are very proud to have service that is as good as our machines. Please click here to find out more about Isowa’s field service.
→Go to Service for details
